Thông tin chi tiết sản phẩm:
|
| Thương hiệu: | Huawei | Người mẫu: | UBBPG1 |
|---|---|---|---|
| Tình trạng: | đồ cũ | Bảo hành: | 3 tháng |
| Thời gian dẫn đầu: | 1-3 ngày | Thời gian giao hàng: | 3-5 ngày |
| Cách sử dụng: | trạm cơ sở | Kiểu: | BBU |

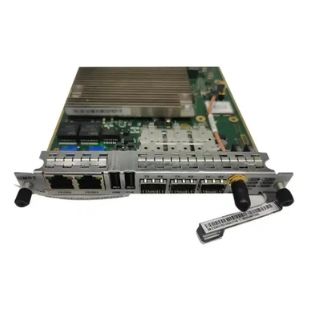

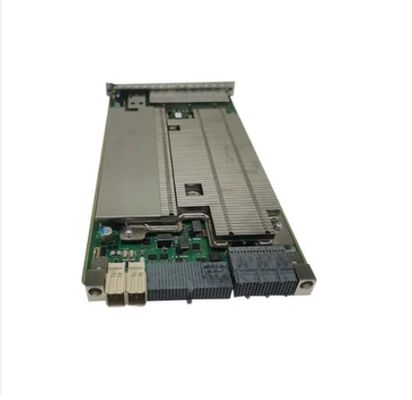

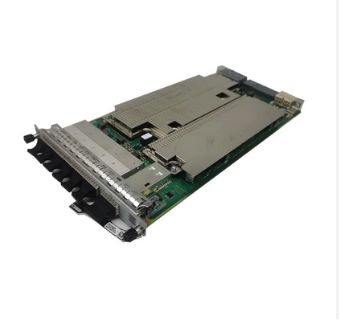

Overview
Model / Part Number: 03050BYF
Voltage input: 38.4V DC to ~57V DC (nominal –48V)
Dimensions (H × W × D): 86 mm × 442 mm × 310 mm
Weight: In full configuration, ~ 18 kg
From broader UBBP / baseband-processing documentation (for Huawei UBBP series)
Ports / Interfaces:
CPRI ports: 6 (labelled CPRI0 to CPRI5)
HEI (High-speed interconnect) port: 1 (QSFP) for inter-board / inter-module baseband sharing
CPRI Rates Supported: 1.25, 2.5, 4.9, 9.8 Gbit/s (and also 6.144 Gbit/s)
Topology Support: star, chain, ring topologies among modules / links
Multi-mode / Multi-standard Support: supports GSM, UMTS, LTE concurrently (i.e. multimode concurrency)
Carrier / Cell Mapping (examples)
In GSM mode: depending on CPRI rate, up to e.g. 24 carriers (1T2R) etc.
In UMTS: mapping between CPRI rate and number of cells supported
In LTE (FDD / TDD): supports multiple cells, multiple MIMO configurations depending on bandwidth & link capacity
