Thông tin chi tiết sản phẩm:
|
| Tên sản phẩm: | Bộ định tuyến mạng công nghiệp | Mã sản phẩm: | C1121-4P |
|---|---|---|---|
| Tình trạng: | Mới | Sự chi trả: | TT/Paypal |
| Lô hàng: | DHL/FEDEX | Bảo hành: | 1 năm |
| Thời gian dẫn: | 1 ~ 3 ngày | Từ khóa: | C1121-4P |
| Item | Specification |
|---|---|
| Model | Cisco C1121-4P |
| Product Series | Cisco ISR 1100 Series |
| LAN Ports | 4 × Gigabit Ethernet (PoE Supported) |
| WAN Interfaces | GE WAN |
| PoE | Yes |
| VPN Support | IPSec, DMVPN, FlexVPN |
| Routing Protocols | OSPF, BGP, EIGRP, RIP |
| Security | Cisco IOS XE Security |
| Management | CLI, Cisco DNA Center, Web UI |
| Deployment | Enterprise Branch, SMB, Retail, Remote Office |
| Specification | Details |
|---|---|
| Product Model | Cisco C1121-4P |
| Product Family | Cisco ISR 1100 Series Integrated Services Routers |
| Ethernet Ports | 4 × 10/100/1000 Gigabit Ethernet with PoE |
| WAN Connectivity | Gigabit Ethernet WAN |
| Processor | Multi-core CPU |
| Operating System | Cisco IOS XE |
| VPN Features | IPSec VPN, DMVPN, FlexVPN, SSL VPN |
| Routing | Static Routing, RIP, OSPF, EIGRP, BGP |
| Security Features | Zone-Based Firewall, ACL, NAT, IPSec Encryption |
| QoS | Advanced Quality of Service |
| SD-WAN Ready | Supported |
| USB Ports | USB 3.0 |
| Console Port | RJ-45 Console |
| Management | CLI, SNMP, NETCONF, Cisco DNA Center |
| IPv6 | Fully Supported |
| Power over Ethernet | IEEE 802.3af/at PoE |
| Mounting | Desktop or Wall Mount |
| Typical Applications | Branch Office, Retail Stores, Enterprise Edge, Small Business Networks |

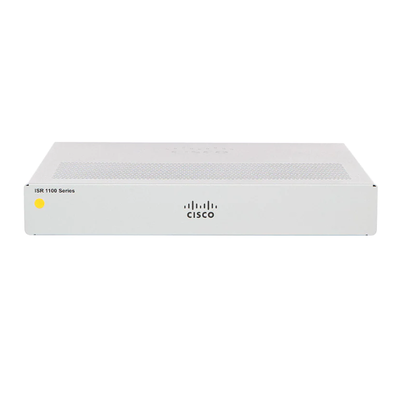

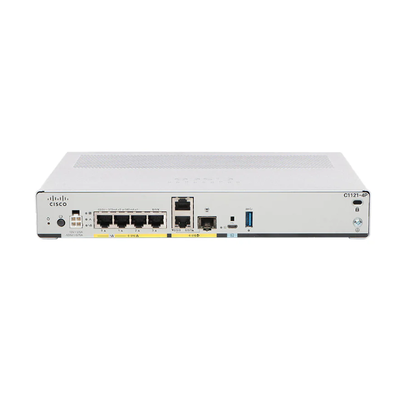

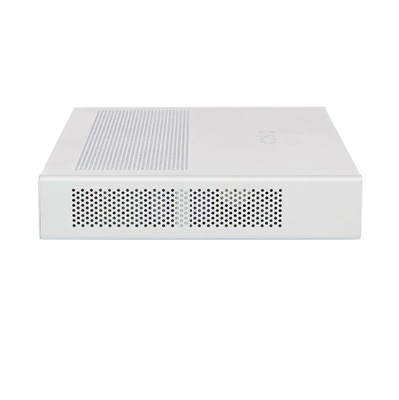

The Cisco C1121-4P Integrated Services Router (ISR) is a high-performance enterprise router specifically designed for secure branch networking, small offices, retail locations, and distributed enterprise environments. As part of Cisco's trusted ISR 1100 Series, the C1121-4P combines advanced routing, integrated security, VPN services, and Power over Ethernet (PoE) capabilities into a compact and energy-efficient platform.
Featuring four Gigabit Ethernet PoE ports, the Cisco C1121-4P can directly power IP phones, wireless access points, surveillance cameras, and other PoE-enabled devices without requiring additional power injectors. This reduces deployment costs while simplifying network infrastructure.
Powered by Cisco IOS XE, the router delivers enterprise-grade routing protocols including OSPF, BGP, EIGRP, and RIP, while supporting secure WAN connectivity through IPSec VPN, DMVPN, FlexVPN, and SD-WAN integration. Built-in security technologies such as Zone-Based Firewall, Network Address Translation (NAT), and advanced encryption help protect business-critical applications and data.
Whether deploying a new branch office or upgrading an existing network, the Cisco C1121-4P offers scalable performance, centralized management through Cisco DNA Center, and reliable connectivity for cloud applications, VoIP, and business services.
The Cisco C1121-4P is widely deployed in:
Compared with traditional branch routers, the Cisco C1121-4P provides integrated routing, security, VPN, and PoE functionality in a single platform. This reduces hardware investment, lowers operating costs, and simplifies network management while maintaining enterprise-grade reliability.
Benefits include:
| Feature | Cisco C1121-4P | Cisco C1111-4P |
|---|---|---|
| Performance | Higher | Standard |
| CPU | Newer Multi-core | Previous Generation |
| WAN Capability | Higher Throughput | Lower Throughput |
| Security Services | Enhanced | Standard |
| SD-WAN | Fully Supported | Supported |
| Recommended For | Medium Branch Offices | Small Branch Offices |
Recommendation:
Choose the Cisco C1121-4P if your organization requires higher VPN throughput, better application performance, enhanced security, and long-term scalability. The C1111-4P remains a cost-effective option for smaller branch deployments with lighter traffic demands.
Yes. The Cisco C1121-4P is specifically designed for enterprise branch deployments, providing secure WAN connectivity, advanced routing, PoE support, and integrated security services.
Yes. It includes 4 Gigabit Ethernet PoE ports, allowing direct connection and power delivery to IP phones, wireless access points, and surveillance cameras.
Yes. The Cisco C1121-4P is SD-WAN ready and supports Cisco SD-WAN deployments for centralized policy management and optimized WAN connectivity.
Supported VPN technologies include:
These features enable secure remote access and branch-to-branch communications.
The Cisco C1121-4P supports:
Yes. It supports Cisco DNA Center for centralized provisioning, monitoring, automation, and lifecycle management.
We provide professional services for Cisco networking products, including:
