Thông tin chi tiết sản phẩm:
|
| Tên sản phẩm: | Thiết bị chuyển mạch mạng Huawei | Mã sản phẩm: | S5735R-L48P4X-A |
|---|---|---|---|
| Sự chi trả: | TT/Paypal | Lô hàng: | DHL |
| Tình trạng: | Mới | Thời gian dẫn: | 2-3 ngày |
| Bảo hành: | 1 năm | Từ khóa: | S5735R-L48P4X-A |

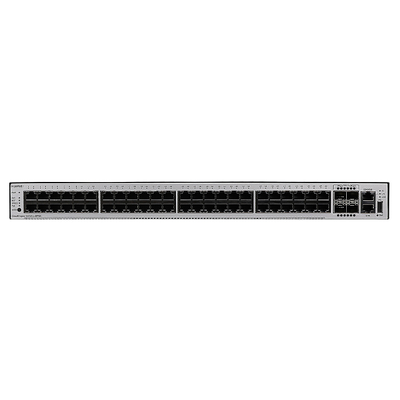

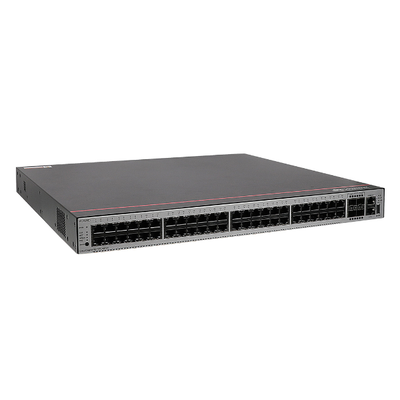

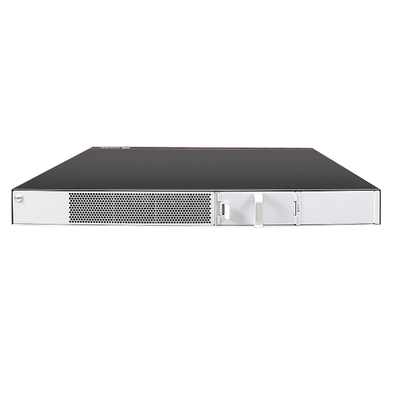

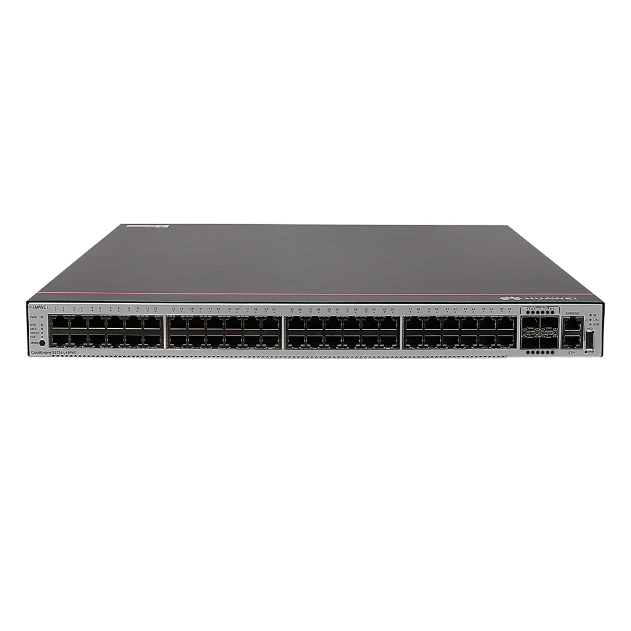

S5735-L48P4X-A is the Huawei S5735-L switch with 48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports, PoE+. Huawei CloudEngine S5735-L is a series of simplified gigabit access switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports. They are designed for enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and powered by Huawei’s Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.
Table 1 shows the quick spec.
|
Product Model |
S5735-L48P4X-A |
|
Forwarding Performance |
132 Mpps |
|
Switching Capacity |
176 Gbit/s, 432 Gbit/s |
|
Fixed Ports |
48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports |
|
PoE+ |
Supported |
Table 2 shows the recommended models.
|
Model |
Description |
|
OMXD30000 |
Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
|
OSX010000 |
Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
|
SFP-GE-LX-SM1310 |
Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
|
OSXD22N00 |
Optical Transceiver, SFP+, 10G, Multi-mode Module (1310nm, 0.22km, LC, LRM) |
|
SFP-10G-USR |
10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC) |
|
OMXD30009 |
Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF, 10 |
|
SFP-10G-LR |
Huawei Optical Transceiver SFP-10G-LR, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
Table 3 shows the comparison.
|
Product Model |
S5735-L12T4S-A S5735-L12P4S-A |
S5735-L24T4S-A S5735-L24P4S-A |
S5735-L24T4X-A S5735-L24P4X-A |
S5735-L48T4S-A |
|
Forwarding Performance |
24 Mpps |
42 Mpps |
96 Mpps |
78 Mpps |
|
Switching Capacity |
32 Gbit/s/336 Gbit/s |
56 Gbit/s/336 Gbit/s |
128 Gbit/s/336 Gbit/s |
104 Gbit/s/432 Gbit/s |
|
Fixed Ports |
12 x 10/100/1000Base-T ports, 4 x GE SFP ports |
24 x 10/100/1000Base-T ports, 4 x GE SFP ports |
24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports |
48 x 10/100/1000BASE-T ports, 4 x GE SFP ports |
|
PoE+ |
CloudEngine S5735-L12P4S-A: Supported |
|||
S5735-L48P4X-A Specification |
|
|
Forwarding Performance |
132 Mpps |
|
Switching Capacity |
176 Gbit/s, 432 Gbit/s |
|
Fixed Ports |
48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports |
|
PoE+ |
Supported |
|
MAC Features |
MAC address auto-learning and aging |
|
VLAN Features |
4094 VLANs |
|
IP Routing |
Static route, RIP, RIPng, OSPF, OSPFv3 |
|
Super Virtual Fabric (SVF) |
Plug-and-play SVF clients |
|
Interoperability |
VBST (compatible with PVST/PVST+/RPVST) |
