Thông tin chi tiết sản phẩm:
|
| Tên sản phẩm: | Thiết bị chuyển mạch mạng Huawei | Mã sản phẩm: | S6330-H48X6C-A |
|---|---|---|---|
| Sự chi trả: | TT/Paypal | Lô hàng: | DHL |
| Tình trạng: | Mới | Thời gian dẫn: | 2-3 ngày |
| Bảo hành: | 1 năm | Từ khóa: | S6330-H48X6C-A |

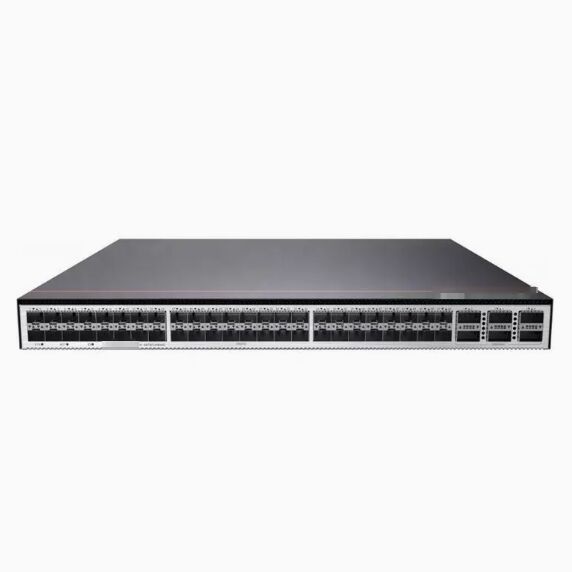

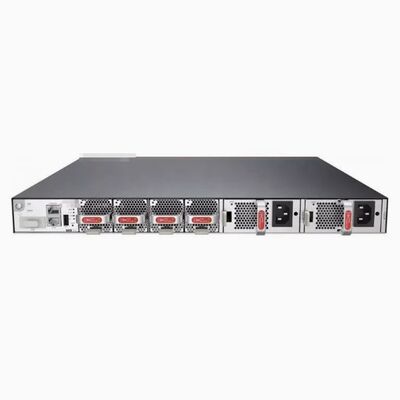

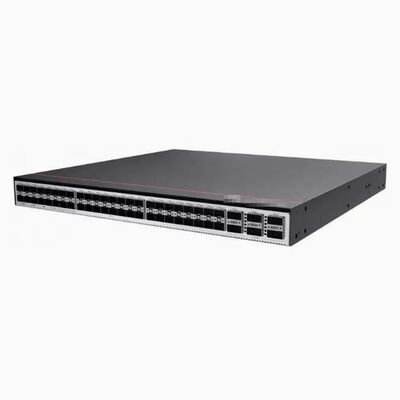

The Huawei CloudEngine S6330-H48X6C-A is a next-generation, high-performance 10GE aggregation switch designed for enterprise campus and data center networks. It provides 48 fixed 10GE SFP+ ports for high-density downlink connections and 6 high-speed 100GE QSFP28 ports for scalable uplinks, ensuring non-blocking performance with a 25.6 Tbps switching capacity and 2000 Mpps forwarding rate.
| Item | Specification |
|---|---|
| Model | Huawei CloudEngine S6330-H48X6C-A |
| Fixed Ports | 48 × 10GE SFP+; 6 × 40/100GE QSFP28 |
| Switching Capacity | 4.8 Tbps / 25.6 Tbps |
| Packet Forwarding | 2000 Mpps |
| Power Supply | Dual modular, hot-swappable, N+1 redundant |
| Fan | 4 × pluggable, front-to-back airflow |
| Form Factor | 1U 19-inch rack-mountable |
| Parameter | Detail |
|---|---|
| Product Series | CloudEngine S6330-H Series |
| Port Configuration | 48 × 10GE SFP+ ports
|
| Switching Capacity | 4.8 Tbps (device), 25.6 Tbps (stacking) |
| Packet Forwarding Rate | 2000 Mpps |
| Layer 3 Features | Static routing, RIP, OSPF, IS-IS, BGP, BGP4+, ECMP, VXLAN, EVPN |
| Layer 2 Features | 4K VLANs, GVRP, MUX VLAN, VBST, LNP, VCMP |
| Security Features | 802.1X, ACL, MACsec, CPU protection, storm control |
| High Availability | SVF, CSS, VRRP, BFD, ERPS, hot-swappable power/fans |
| Power Supply | Dual hot-swappable modules (AC/DC optional), N+1 redundancy |
| Operating Temperature | 0°C to 45°C |
| Dimensions (W×D×H) | 442 mm × 572 mm × 43.6 mm |
| Typical Applications | Enterprise campus aggregation, data center leaf switch, metro aggregation |
