Thông tin chi tiết sản phẩm:
|
| Tên sản phẩm: | Bộ định tuyến | Số phần: | ISR4221-GIÂY/K9 |
|---|---|---|---|
| Sự chi trả: | TT | Lô hàng: | DHL |
| Tình trạng: | Mới | Thời gian dẫn đầu: | 2-3 ngày |
| Bảo hành: | 1 năm | Từ khóa: | ISR 4351 |
Table 1 shows the Quick Specs.
| Product Code | Cisco ISR4221-SEC/K9 |
| Bundle | Cisco ISR 4221 SEC Bundle with SEC lic |
| Aggregate Throughput | 35 Mbps to 75 Mbps |
| Total onboard WAN or LAN 10/100/1000 ports | 2 |
| RJ-45-based ports | 2 |
| SFP-based ports | 1 |
| NIM (Network Interface Modules) slots | 2 |
| Onboard ISC slot | No |
|
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) |
4 GB |
| Flash Memory | 8 GB |
| Power-supply options | External AC only |
| Rack height | 1 RU |
| Dimensions (H x W x D) | 1.72 x 12.7 x 10 in (43.7 x 322.6 x 254 mm) |
| Weight with AC PS (no modules) | 7.1 lb (3.22 kg) |

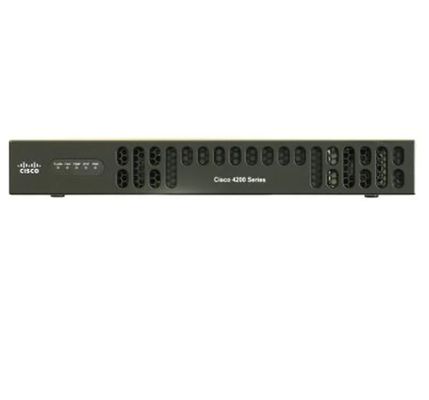

Figure 1 shows the LEDs on the front panel of the Cisco ISR4221-SEC/K9.
·There are 4 LEDs on the front panel.

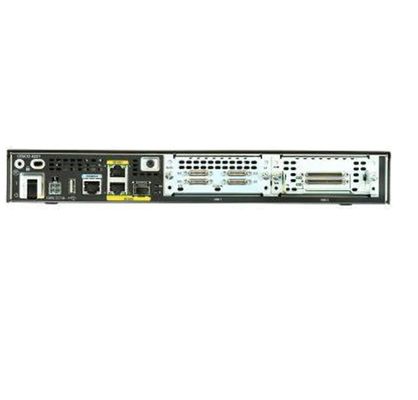

Figure 2 shows the back panel of Cisco ISR4221-SEC/K9.
Note:
| ① | GE 0/0/0 RJ-45 (copper cable) port | ⑤ | Console port |
| ② | Power switch | ⑥ | GE 0/0/1 (copper cable) port |
| ③ | Power input connector | ⑦ | GE 0/0/0 SFP (fiber-optic) port |
| ④ | GE “MGMT” port (with USB port below) | ⑧ | NIM slots |
Figure 3 shows the Security License function.
Table 2 shows some recommended modules and cards.
| Items | Models | Description |
| Console and Auxillary Cables | CAB-CONSOLE-RJ45 | Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F |
| Network Interface Modules | NIM-1MFT-T1/E1 | Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module |
| NIM-ES2-4 | Cisco 4000 Series Integrated Services Router 4-Port Gigabit Ethernet Switch Module layer 2 | |
| NIM-ES2-8 | Cisco 4000 Series Integrated Services Router 8-Port Gigabit Ethernet Switch Module NIM | |
| SFPs for On-Board GE Ports | GLC-LH-SMD | Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM |
| GLC-ZX-SMD | Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM | |
| GLC-SX-M MD | Cisco GLC-SX-M MD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
Table 3 shows the comparison.
| Models | ISR4221/K9 | ISR4221-SEC/K9 |
| Bundle | N/A | Cisco ISR 4221 SEC Bundle with SEC lic |
| Aggregate Throughput | 35 Mbps to 75 Mbps | 35 Mbps to 75 Mbps |
|
Total onboard WAN or LAN 10/100/1000 ports |
2 | 2 |
| RJ-45-based ports | 2 | 2 |
| SFP-based ports | 1 | 1 |
| NIM slots | 2 | 2 |
| Rack height | 1 | 1 |
