Thông tin chi tiết sản phẩm:
|
| Người mẫu: | N9K-C93600CD-GX | Khả năng chuyển đổi: | 12 Tbps |
|---|---|---|---|
| Tỷ lệ chuyển tiếp: | 4.0 bpps (tỷ gói mỗi giây) | Cổng: | 28 cổng 100/40-Gbps QSFP28 và 8 cổng 400/100-Gbps QSFP-DD |
| Ký ức: | 16 gb ram | Kho: | SSD 128 GB |
| Bộ đệm hệ thống: | 80 MB | Kích thước vật lý (H x W x D): | 4.37 x 44,13 x 64,8 cm |
| Tình trạng: | Thương hiệu mới với bảo hành 1 năm | Lô hàng: | DHL/ FedEx/ UPS |

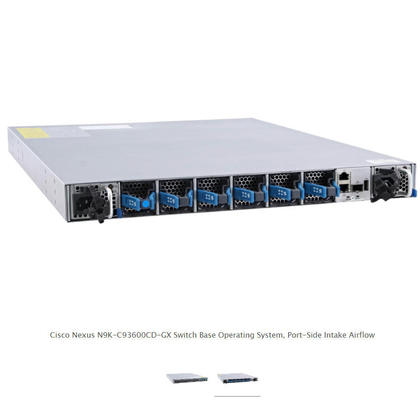

N9K-C93600CD-GX is the Cisco Nexus 9316D Spine and Leaf switch with 28p 100/40G QSFP28 and 8p 400/100G QSFP-DD. Based on Cisco® Cloud Scale technology, the Cisco Nexus® 9300-GX switches are the next generation of fixed Cisco Nexus 9000 Series Switches. The platform introduces a fully backward-compatible 400G optical interface Quad Small Form-Factor Pluggable – Double Density (QSFP-DD) to transparently migrate existing data center fabrics from 40-Gbps and 100-Gbps speeds to 400 Gbps. The platform provides investment protection for customers, delivering highly flexible layer 2 and layer 3 scalability, and performance to meet the changing needs of virtualized data centers and automated cloud environments.
Quick spec.
|
SKU |
N9K-C93600CD-GX |
|
Ports |
28 x 100/40-Gbps QSFP28 ports and 8 x 400/100-Gbps QSFP-DD ports |
|
System memory |
16 GB NX-OS, 24 GB ACI |
|
Solid-State Disk (SSD) |
128 GB |
|
USB |
1 port |
|
RS-232 serial console ports |
1 |
|
Management ports |
2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP+) |
|
Broadwell-DE CPU |
4 cores |
|
Dimensions (H x W x D) |
1.72 x 17.37 x 25.5 in. (4.37 x 44.13 x 64.8 cm) |
Recommended accessories.
|
Part number |
Product description |
|
Fan options |
|
|
NXA-FAN-35CFM-PI |
Nexus Fan, Nexus 2000, 3000, 9000 Single Fan, 35CFM, port side intake airflow |
|
NXA-FAN-35CFM-PE |
Nexus Fan, Nexus 2000, 3000, 9000 Single Fan, 35CFM, port side exhaust airflow |
|
Power supply options |
|
|
NXA-PAC-1100W-PI2 |
Nexus AC 1100W PSU Spare - port side intake |
|
NXA-PAC-1100W-PE2 |
Nexus AC 1100W PSU Spare - port side exhaust |
|
NXA-PDC-1100W-PI |
Nexus 1100W Platinum DC PS, port side intake |
|
NXA-PDC-1100W-PE |
Nexus 1100W Platinum DC PS, port side exhaust |
|
NXA-PHV-1100W-PI |
Nexus 1100W Platinum HV-AC-DC PS, port side intake |
|
NXA-PHV-1100W-PE |
Nexus 1100W Platinum HV-AC-DC PS, port side exhaust |
|
Accessories |
|
|
N9K-C9300-RMK |
Nexus 9000 Fixed Rack Mount Kit |
|
N9K-C9300-ACK |
Nexus 9000 Fixed Accessory Kit |
